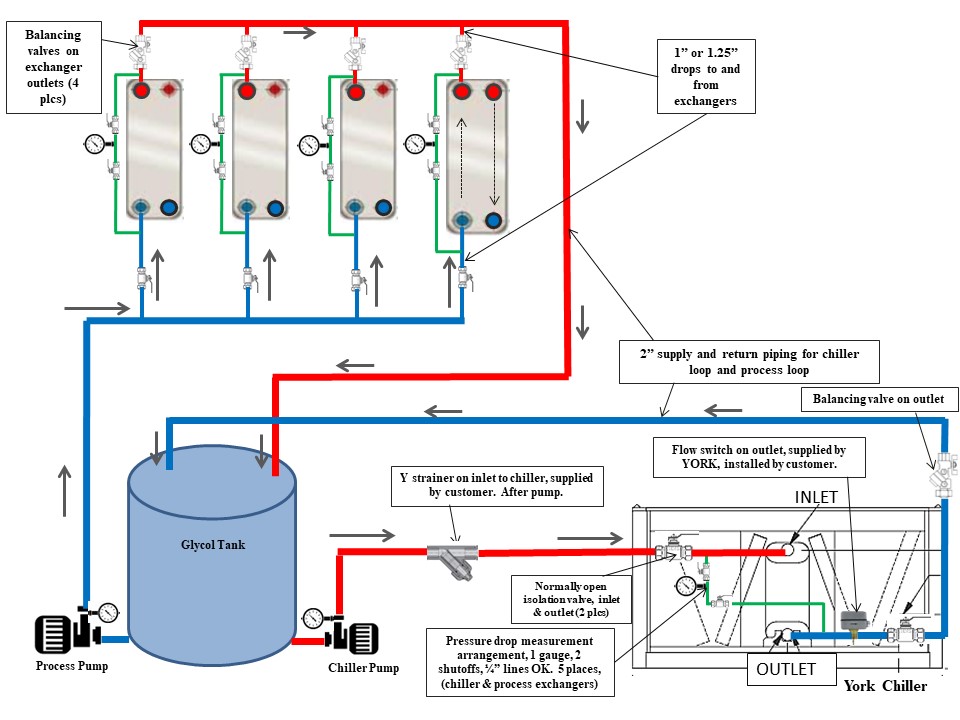

This is an EXAMPLE only to show a separate chiller loop with it's own pump, servicing a central reservoir, and a separate process loop also with it's own pump. In this example the process is 4 heat exchangers. Click here for PDF.
