NEW! 2023 YORK 120ton Air Cooled Chiller 208V YLAA0120SE17PC Coated Coils Avail. 12/19/23

No longer available

NEW! 2023 YORK 120ton Air Cooled Chiller 208V YLAA0120SE17PC Coated Coils Avail. 12/19/23

$104,900 (USD)

Description

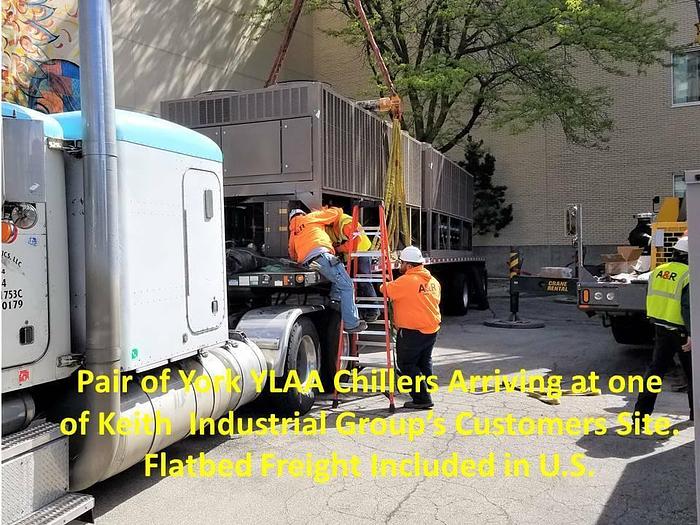

Stock can change daily please check with us on availability! KIG, (Keith Industrial Group Inc.) specializes in NEW Air Cooled Chillers for industries such as breweries, wineries, manufacturing, plating, plastics, comfort and cooling.We provide hundreds of units per year from 20 ton up to 323 ton. This YORK YLAA 0120 VSD "120 ton" chiller is currently being made for stock and due: 12-19-23 Please check with us to confirm availability dates as they can change daily based on incoming sales orders. Availability dates are when units are due into our San Antonio, TX, stock yard location. This special price INCLUDES FREIGHT by flatbed to your location (lower 48 states). This is a North American Made York/Johnson Controls Chiller backed by the DIRECT USA service and support network throughout the country. This is a sizeable investment for your facility / business, DO YOUR HOMEWORK BEFORE YOU BUY. *** THIS IS SPECIAL PRICING BASED ON PAYMENT PRIOR TO SHIP *** A start up visit charge must be added to the total and is required to honor 1 year parts and labor warranty. The start up charge can range from $ 2,300 up to $ 3,500 depending on the address and zip code of the site location. PLEASE CHECK WITH US. Please understand that it is the customers obligation to get the chiller installed and under power with appropriate piping and flow prior to the technicians arrival. The York start up is a check and confirmation that is installed and set correctly to initiate the warranty. KIG guides you through this process and assists in scheduling. This special price is for payment by wire or cleared business check prior to shipment. For payment "terms" we will direct you to one of our leasing companies. Sales tax must be added for your particular state unless you provide a local state tax exemption certificate, if applicable to your state (example: partial or full tax exemption for manufacturing). ** This unit is 208 Volts 3 phase power.

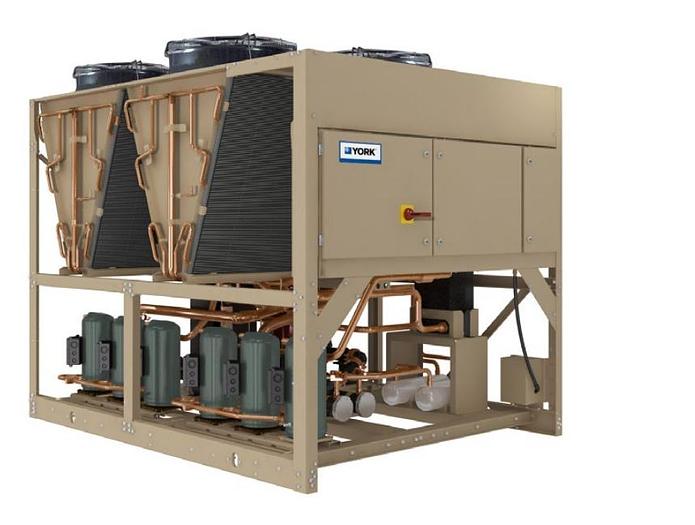

** this unit has UPGRADED COATED COILS (PC) York / Johnson Controls, YLAA0120 "SE" series air cooled chiller VSD Variable Speed Drive on ALL fans R-410A Refrigerant (Fully Charged) VoltageCode - (208/3/60) (LOW voltage also available and often in STOCK) MCA: 507 amps / Max fuse: 600 Important: these "low voltage units" have an upper incoming voltage of 220 Volts. 4 Scroll Compressors (4 @ 32 hp) Water through evap: Min. 150 gpm, max 625 gpm. Optimal: about 280-320gpm 3" inlet and outlet connections SP NF Disconnect Switch w/Lockable Handle Control Transformer Both Low/High Ambient Kit (for outdoor winter use / or high temp summer use) - both ok English cUL/cETL Listing Service Isolation Valves Hot Gas Bypass Flow Switch included with Extension Kit (included flow switch to be installed in your piping, and wired back to chiller) ASME Pressure Vessel & Associated Codes Louver Enclosure Panels Sound Kit Low Sound Fans Neoprene Isolators

Specifications

ManufacturerYork
ModelYLAA-0120SE17PC
ConditionNew
MpnYLAA0120SE17PC
Availability Date12/19/23
Country/region of manufactureUnited States
Services availableFreight - Check the item description or Contact the seller for details

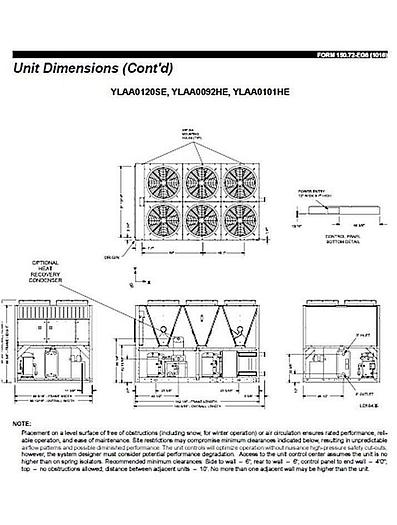

Dimensions89" wide x 143" long x 95" tall
Weight5185 lbs
