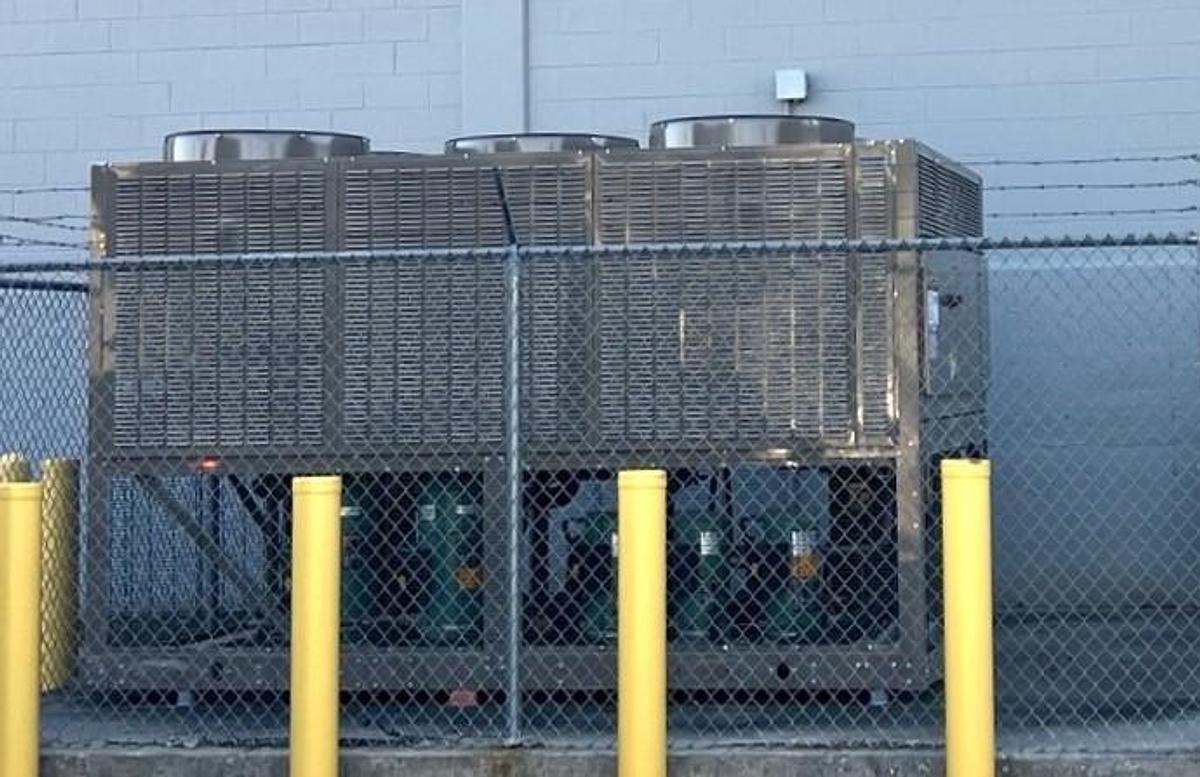

New 2025 YORK 80 ton Coated Coils Air Cooled Chiller YLAA-0080SJ17PC R-454b 208V Next Available - 12/9/25

Stock can change daily please check with us on availability! KIG, (Keith Industrial Group Inc.) specializes in quality NEW Air-Cooled Chillers for industries such as breweries, wineries, manufacturing, plating, plastics, comfort cooling. We provide hundreds of units per year from 5 tons up to 350 tons.

NOTE:   This chiller has the upgraded epoxy coated condenser coils (designated by PC in model number) which are ideal for coastal environments or corrosive environments (e.g.: refineries, etc.). Pricing reflects this upgrade.  The same model chiller is available without this option at a reduced cost (designated by VSD in model number). Please see our other listings.

This YORK YLAA-0080SJ17 PC "77 ton" chiller is currently being made for stock and:

·        Next available due into stock 12/9/25

·        Note: this is the newest R454b refrigerant accepted in ALL states

·        A start up visit charge must be added to the total and is required to honor 1 year parts and labor warranty. Cost ranges from $ 2,300 up to $ 4,500 depending on the address and zip code of the site location. PLEASE CHECK WITH US.

·        York / Johnson Controls, YLAA-0080SJ17PC series air cooled chiller

·        ~ 77 tons of cooling at 44F water / 95F ambient conditions

·        Variable Speed Drive on ALL fans

·        Plate evaporator. Microchannel Coils.

·        R-454b Refrigerant (Fully Charged) (68 Lbs)

·        2 refrigerant circuits

·        Voltage Code - (208/3/60)

·        Maximum allowable incoming voltage is 220 volts

·        MCA: 373 amps / Max fuse: 400

·        6 Scroll Compressors (2 for each circuit)

·        Water through evap: Min. 100 gpm, max 350 gpm. Design flow rate 183 gpm

·        3" inlet and outlet connections (grooved victaulic)

·        SP NF Disconnect Switch w/Lockable Handle

·        Control Transformer

·        Both Low/High Ambient Kit (for outdoor winter use / or high temp summer use) - both ok

·        Hot Gas Bypass on circuit #1

·        Integrated flow switch and Y strainer

·        No water pump or reservoir tank internal

·        89" wide x 116" long x 95" tall

·        Shipping Weight: 4427 /  Operating Weight 4517  lbs

·        Keith Industrial Group, Inc. (KIG) Clinton MA / San Antonio TX
