NEW 2024 JCI - York 500 ton Air Cooled Screw Chiller YVAA-0500JC46CH R-513A 460V In-Stock

Stock can change daily please check with us on availability! KIG, (Keith Industrial Group Inc.) specializes in quality NEW Air-Cooled Chillers for industries such as breweries, wineries, manufacturing, plating, plastics, comfort cooling. We provide hundreds of units per year from 5 tons up to 500 tons.

Availability Status of this YORK YVAA-0500JC46CH "480 ton" chiller:

• Currently in stock as of 9/10/25

  Note:  This YVAA model is a dual variable VFD screw chiller with shell tube evaporator.

•  A start up visit charge must be added to the total and is required to honour 1-year parts and labour warranty. Cost ranges from $ 4,500 up to $ 9,000 depending on the address and zip code of the site location. PLEASE CHECK WITH US.

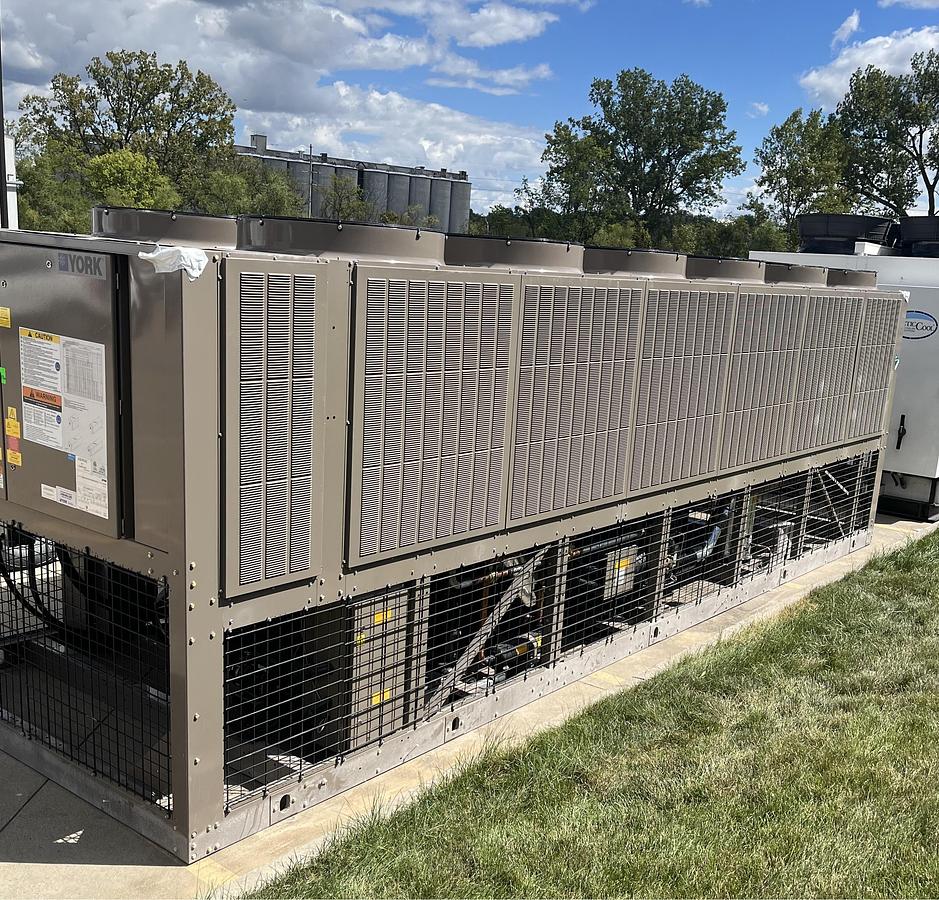

• York / Johnson Controls, Model YVAA0500JC46CH Air Cooled Screw Chiller
• ~ 480 tons of cooling at 44F water / 95F ambient conditions
• Low Sound Fans With Variable Speed Control
• Variable Speed Drive on ALL fans
• Shell & Tube Evaporator.
• Microchannel Coils.
• 2 refrigerant circuits
• R-513a Refrigerant (Fully Charged) (360 + 390 Lbs)
• VoltageCode - (460/3/60)
• MCA: 593.7 amps / Max fuse: 1000
• Water through evap: Min. 550 gpm, max 2160 gpm. Design flow rate 1149
• 8" inlet and outlet connections (located at “end” of shell/tube)
• MP Circuit Breaker w/Lockable Handle
• Control Transformer
• Both Low (-10F) and High Ambient Kit (for outdoor winter use / or high temp summer use)
• Integrated flow switch
• Elastomeric Isolators
• No water pump or reservoir tank internal
• 88.3" wide x 467.1" long x 94.6" tall
• Shipping Weight [lbs] 24587
• Operating Weight [lbs] 25672
• Freight is extra, FOB South Carolina. Contact us for freight quote
• Keith Industrial Group, Inc. (KIG) Clinton MA / San Antonio TX
