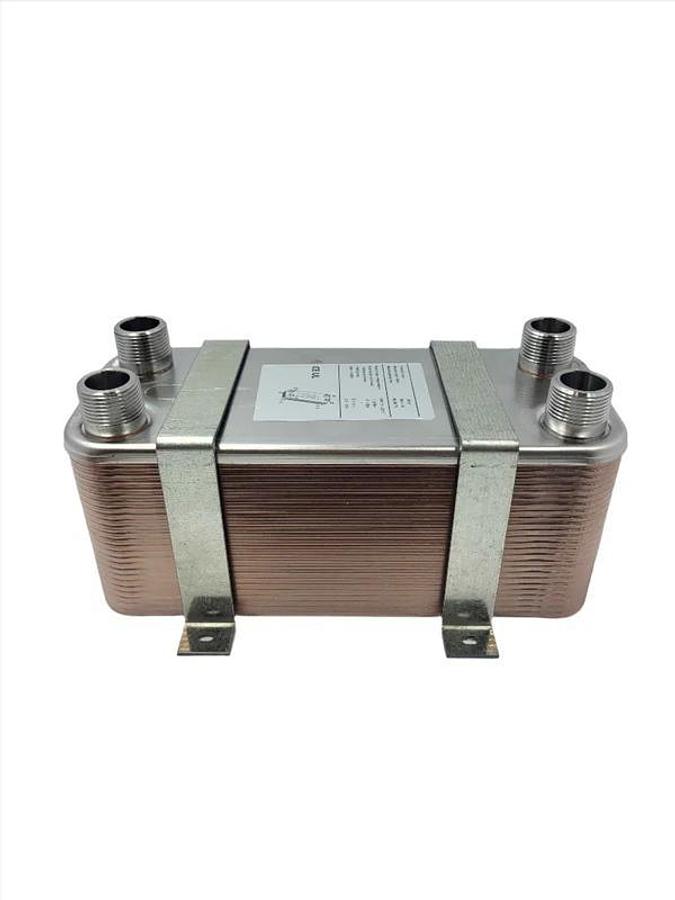

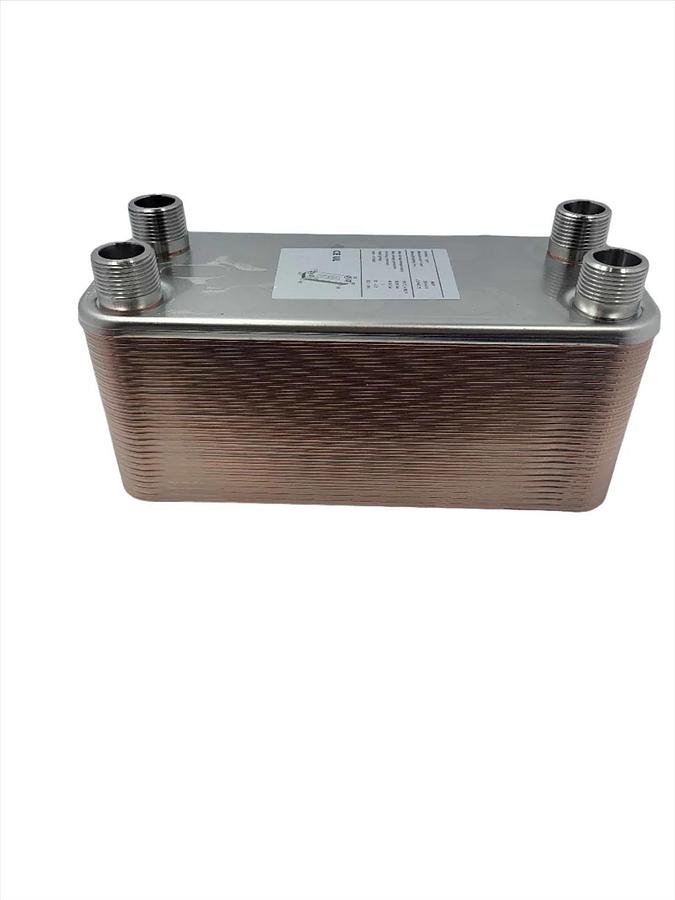

Brazed Plate Heat Exchanger, 5" x 12", 50 Plate

For some applications, a separate heat exchanger is required to work with the chiller to isolate the water or process loop from the chilled water/glycol loop.  Some common reasons for this are:

* Process Water needs to get below ~ 40F.  Straight water cannot flow directly into a chiller below these temps. This is because the refrigerant temps in the chillers evaporator/exchanger will be ~ 15 to 20 degrees F colder than the desired the temperature of the water.  Freezing and potential rupture of the chillers evaporator would result. The chiller loop would be a glycol concentration going through the glycol side of the heat exchanger.

* the process water/fluid that needs to be cooled is dirty, and a heat exchanger isolates the chiller’s water/glycol loop from the process loop.

* Brewery or beverage applications.

• Material: Plate material: stainless steel, Brazing material: Copper.
• Type: Liquid-to-Liquid
• Connections: 1" NPT ports
• Design Pressure: 652 psi
• Test Pressure: 971 psi
• Design Temperature: Up to 437 °F
• Approvals: UL Listed
