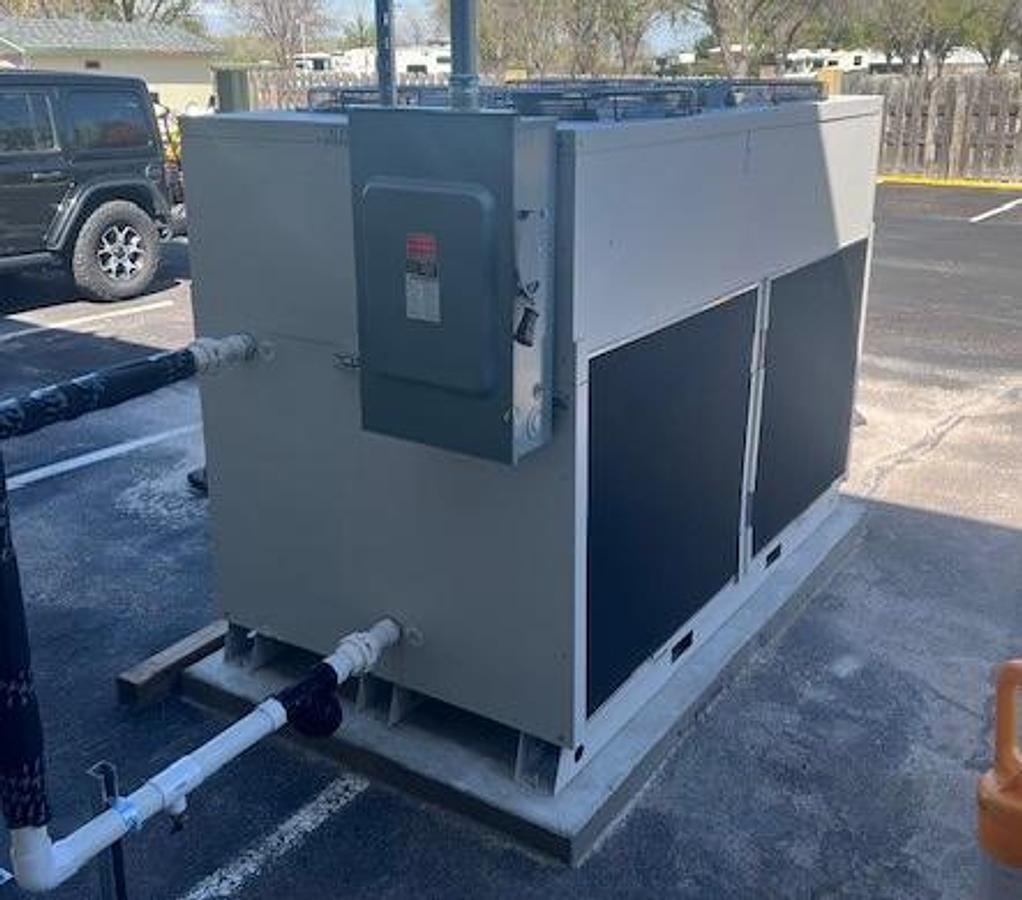

KIG K-Series 30 Ton Packaged Style C Chiller with Dual Integrated Pumps

Stock can change daily please check with us on availability! KIG, (Keith Industrial Group Inc.) specializes in quality NEW Air-Cooled Chillers for industries such as breweries, wineries, manufacturing, plating, plastics, comfort cooling. We provide hundreds of units per year from 5 tons up to 350 tons.

Availability Status of this 30 Ton Industrial Chiller:

• Lead Time: Approx. 8 Weeks.

KIG K-Series 30 Ton Style C Industrial Chiller

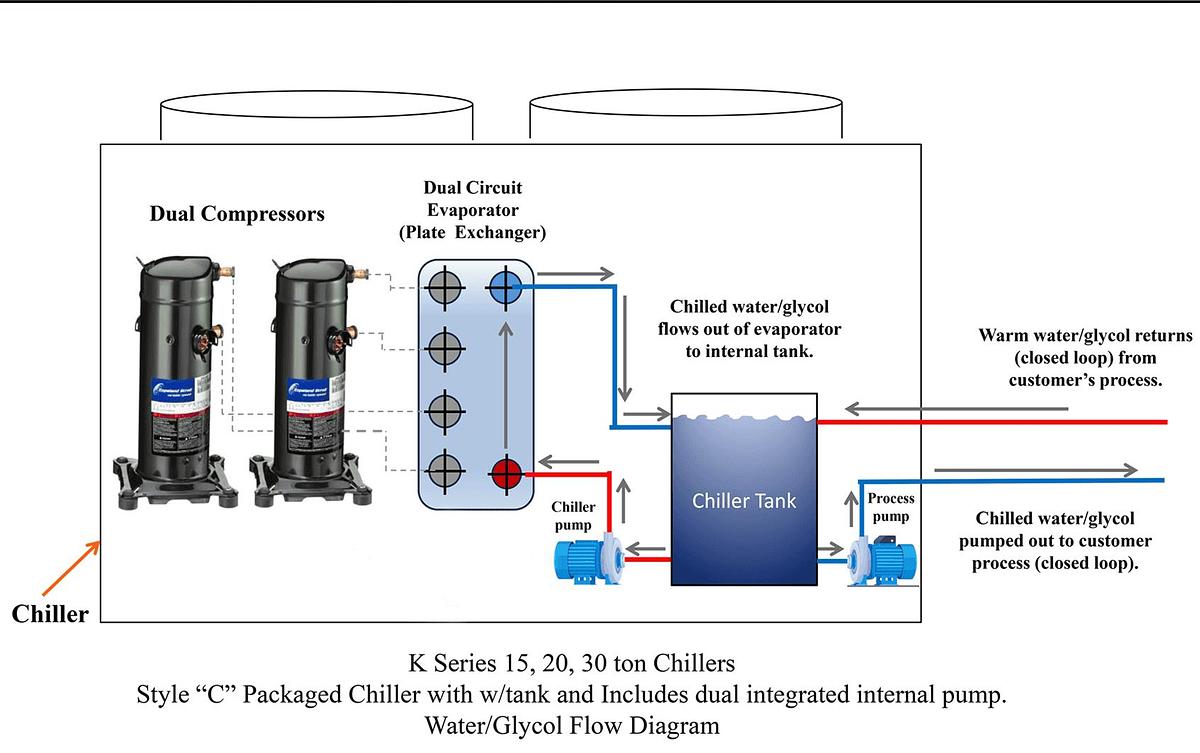

The KIG K-Series 30 Ton Style C Chiller is a packaged, outdoor-rated industrial chiller engineered for reliable process and comfort cooling applications. The Style C configuration includes an internal reservoir and dual integrated pumps, delivering a complete, self-contained cooling solution that simplifies installation and operation.

This unit features a dual-circuit design with two scroll compressors, providing enhanced system redundancy, operational flexibility, and long-term reliability for demanding industrial environments. An industrial-grade condenser coil and horizontal coil layout allow for efficient heat rejection and improved service accessibility, while the dual-stage temperature controller enables independent staging and precise temperature control.

Designed for low and high ambient operation, the K-Series Style C chiller is suitable for a wide range of industrial and commercial applications and is available with R-410A or R-454B refrigerant.

Key Features

• Nominal cooling capacity: 30 Tons
• Packaged, outdoor-rated construction
• Dual independent refrigerant circuits
• Two scroll compressors (one per circuit)
• Dual-stage controller with independent circuit staging and setpoints
• Integrated internal reservoir
• Dual internal pumps:

- Circulation pump for chiller loop

- Process pump for customer process loop

• Industrial air-cooled condenser coil
• Horizontal condenser coil layout for improved service access
• Designed for low and high ambient operation
• Suitable for water or water/glycol applications
• Refrigerant options: R-410A or R-454B
• 89" long x 49.5" wide x 64"
